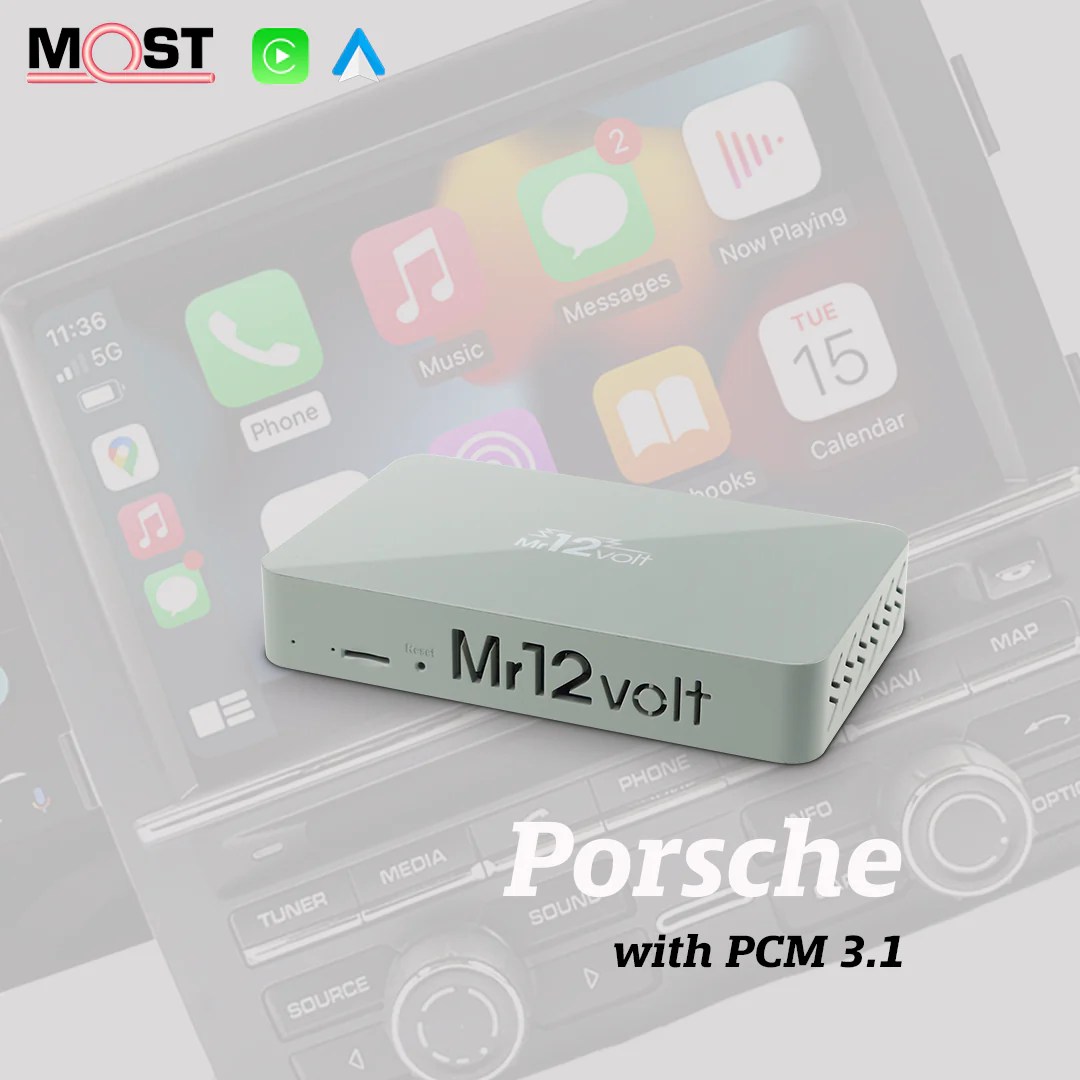

Porsche PCM 3.1 MOST Bus CarPlay & AA Interface OEM mic support 911 Panamera Macan Cayenne

Aprašymas

MOST Bus CarPlay & Android Auto Interface

Model No: P2000-PCM31MD
The brand new Mr12Volt P2000 MM series has just gotten better now with OEM microphone support.

Compatible with PCM 3.1 on the following Porsches:

911                                          2012-2016
Boxster / Cayman              2013-2016
Panamera / Cayenne        2010-2016
Macan                                   2015-2016

Highlight Features:

• OEM microphone support
• Runs on MOST BUS with High-End sound quality
• Wireless & Wired Apple CarPlay, Google Android Auto
• Wireless MirrorLink
• Bluetooth Hands free & Audio Streaming
• USB Video & Music Playback
• Reverse/Front/Left/Right camera Input

• Supports Apple Lossless music streaming
• Highly Customizable 15 bar DSP Equalizer

How it works

• Mr12volt is selected through TV features of PCM
• No coding or Factory TV module is needed, once Mr12volt CarPlay module is installed successfully, the „TV” icon will appear on the PCM home menu right away.
• Supports aftermarket cameras up to AHD720

P2000 supported multimedia type (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium andhigh levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720×576
• JPEG codec (Baseline interleaved) 8176×8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Related Topics:

How to mirror to P2000 from phone

Additional Technical Data:

• Operating Temperature: -20 – +80 degree centigrade
• DAC resolution: 18Bit
• MP3 kbit: 8 – 384kbit
• Voltage: 10 – 14.6V DC
• Operation Current: 450mA (700mA when charging mobile phone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency Response: 20Hz – 20KHz
