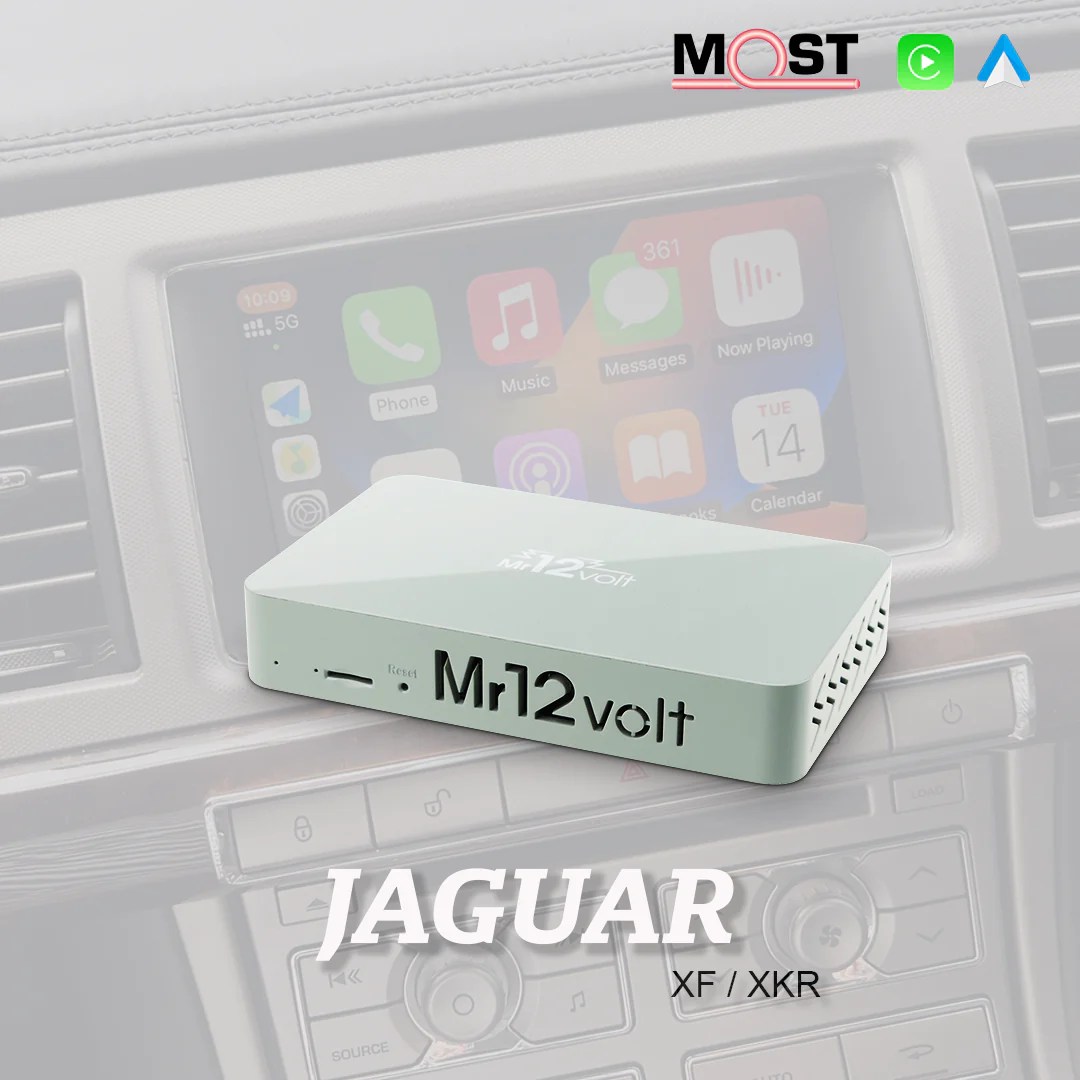

Jaguar High End Audio MOST Bus CarPlay & AA Interface OEM mic support XF250 2012 – 2015

High End Audio MOST Bus CarPlay & Android Auto Interface with OEM Microphone Support

Model No: P2000-XF12MM
The brand new Mr12Volt P2000 MM series has just gotten better now with built in DSP and OEM microphone support.

Compatible with the following Jaguar:

Jaguar XF / XFR      2012 – 2015

IMPORTANT: The P2000 will replace the OEM TV module (if any).

Installation videos:

Highlight Features:

• OEM microphone support
• Runs on MOST BUS with High-End audio quality
• Wireless & Wire Apple CarPlay, Google Android Auto
• Wireless MirrorLink
• Bluetooth Handsfree & Audio Streaming
• USB Video & Music Playback
• Reverse / Front / Left or Right Camera Input

• Supports Apple Lossless Music Streaming
• Highly Customisable 15 Bars DSP Equaliser

How it works

• Mr12volt is selected through Audio/Video>TV in the OEM menu
• No coding is needed
• Supports aftermarket cameras up to AHD720

P2000 supported multimedia type (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium andhigh levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720×576
• JPEG codec (Baseline interleaved) 8176×8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Related Topics:

How to mirror to P2000 from phone

Additional Technical Data:

• Operating Temperature: -20 – +80 degree centigrade
• DAC resolution: 18Bit
• MP3 kbit: 8 – 384kbit
• Voltage: 10 – 14.6V DC
• Operation Current: 450mA (700mA when charging mobile phone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency Response: 20Hz – 20KHz
